Horns and fanfares
Safe on the road in the urban jungle – these sounds can never be missed! Experience the perfect mix of sound and performance with the horns and fanfares from HELLA. Discover our extensive product range with a wealth of information and details really worth knowing about. Here you will find a wide selection of horns and fanfares that offer you an impressive sound experience. Find out all about the features and technical specifications of our products. We attach great importance to quality and offer you first-class solutions tailored to suit your individual requirements.
As a special highlight, we offer the opportunity of listening to and trying out the sounds of our horns and fanfares directly on the product page. Experience the power and character of the various sounds and find exactly the one that suits you and your vehicle.
We also provide you with practical brief information that can be downloaded. This means you have all the important information in a compact format and ready to hand at all times.
Take your vehicle sound to a new level and set new standards with HELLA!
Product overview
B36 disc horn
B36 disc horn
- High quality rich tone
- Penetrating, long-range tone for additional safety
- Enhanced quality and durability
Features
- 116 ± 2 dB(A)
- 335 Hz (low tone) or 400 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
B36 24 V disc horn
B36 24 V disc horn
- High quality rich tone
- Penetrating, long-range tone for additional safety
- Enhanced quality and durability
Features
- 116 ± 2 dB(A)
- 335 Hz (low tone) or 400 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
DL50 Set disc horns
DL50 Set disc horns
➔ Deep and penetrating warning singal
➔ Riveted assembly instead of screws to increase reliability
➔ Ideal for all kinds of commercial vehicles
Features
- 114 ± 3 dB(A)
- 310 Hz (low tone) / 380 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
DL50 Set 24 V disc horns
DL50 Set 24 V disc horns
➔ Deep and penetrating warning singal
➔ Riveted assembly instead of screws to increase reliability
➔ Ideal for all kinds of commercial vehicles
Features
- 114 ± 3 dB(A)
- 310 Hz (low tone) / 380 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
M26 disc horn
M26 disc horn
➔ High quality rich tone
➔ Penetrating, long-range tone for additional safety
➔ Enhanced quality and durability
Features
- 115 ± 3 dB(A)
- 400 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
M26 disc horn
M26 disc horn
➔ High quality rich tone
➔ Penetrating, long-range tone for additional safety
➔ Enhanced quality and durability
Features
- 115 dB(A)
- 335 Hz (low tone) or 400 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S70 disc horn
S70 disc horn
➔ Recommend for motorcycle
➔ Compact and lightweight
➔ Strong signal for road safety
Features
- 108 ± 3 dB(A)
- 460 Hz (high tone)
- 50.000 cycles (ECE-R28)
- 12 V
S70 Set disc horns
S70 Set disc horns
➔ Recommend for motorcycle
➔ Compact and lightweight
➔ Strong signal for road safety
Features
- 108 ± 3 dB(A)
- 380 Hz (low tone) / 480 Hz (high tone)
- 50.000 cycles (ECE-R28)
- 12 V
S77 disc horn
S77 disc horn
- Classic sound with high sound density
- Less power to produce a powerful sound
- Powder-coated corrosion-resistant surface
Features
- 110 ± 3 dB(A)
- 430 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V

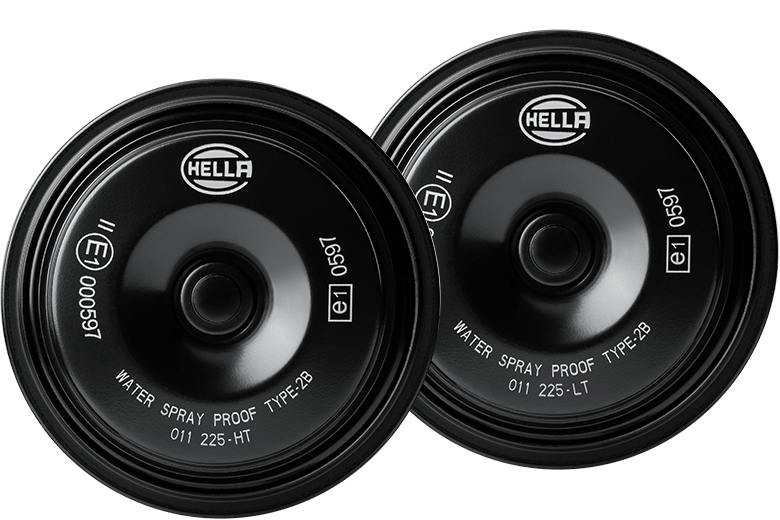

S77 Set disc horns
S77 Set disc horns
➔ Classic sound with high sound density
➔ Less power to produce a powerful sound
➔ Powder-coated corrosion-resistant surface
Features
- 110 ± 3 dB(A)
- 360 Hz (low tone) / 430 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
S77 Set disc horns
S77 Set disc horns
➔ Classic disc horns with a diameter of 77 mm
➔ Sound propagation primarily directed forwards
➔ Good penetration over a long distance in noisy traffic
Features
- 360 Hz (low tone) / 430 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
S90 disc horn
S90 disc horn
➔ Strong and focused sound emission
➔ Fully shaped oscillator for optimal sound performance
➔ Original equipment quality horns you can trust from a global leader
Features
- 111 ± 3 dB(A)
- 415 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S90 disc horn
S90 disc horn
➔ Strong and focused sound emission
➔ Fully shaped oscillator for optimal sound performance
➔ Original equipment quality horns you can trust from a global leader
Features
- 111 ± 3 dB(A)
- 350Hz (low tone) / 415 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S92 disc horn
S92 disc horn
➔ Stonge and focused sound emission
➔ Fully shaped oscillator for optimal sound performance
➔ Original equipment quality horns you can trust from a global leader
Features
- 113 ± 3 dB(A)
- 335 Hz (low tone) / 435 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S92 Set disc horns
S92 Set disc horns
➔ Classic disc horns with a diameter of 92 mm
➔ Sound propagation primarily directed forwards
➔ Good penetration over a long distance in noisy traffic
Features
- 113 ± 3 dB(A)
- 335 Hz (low tone) / 435 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S92 Set 24 V disc horns
S92 Set 24 V disc horns
➔ Stonge and focused sound emission
➔ Fully shaped oscillator for optimal sound performance
➔ Original equipment quality horns you can trust from a global leader
Features
- 113 ± 3 dB(A)
- 335 Hz (low tone) / 435 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
S98 disc horn
S98 disc horn
- High quality rich tone
- Penetrating, long-range tone for additional safety
- Enhanced quality and durability
Features
- 115 ± 3 dB(A)
- 400 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
S98 Set disc horns
S98 Set disc horns
- High quality rich tone
- Penetrating, long-range tone for additional safety
- Enhanced quality and durability
Features
- 115 ± 3 dB(A)
- 335 Hz (low tone) / 400 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
S108 Set disc horns
S108 Set disc horns
- Sporty design with stable yellow protective grille
- Penetrating sound for more safety on the road
- Ideal for tough off-road use
Features
- 115 ± 3 dB(A)
- 350 Hz (low tone) / 415 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
B133 disc horn
B133 disc horn
- Signature Red Grill Horn from HELLA
- Traffic blaster, produces a penetrating stronge sound
- Ideal for all passenger cars and tough off-road use
Features
- 118 ± 3 dB(A)
- 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
B133 Set disc horns
B133 Set disc horns
- Signature Red Grill Horn from HELLA
- Traffic blaster, produces a penetrating stronge sound
- Ideal for all passenger cars and tough off-road use
Features
- 118 ± 3 dB(A)
- 300 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE R28)
- 12 V
B133 Set disc horns, includes 4-pin relay
B133 Set disc horns, includes 4-pin relay
➔ Signature Red Grill Horn from HELLA
➔ Traffic blaster, produces a penetrating stronge sound
➔ Ideal for all passenger cars and tough off-road use
Features
- 118 ± 3 dB(A)
- 300 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
B133 24 V disc horn
B133 24 V disc horn
- Signature Super Tone from HELLA
- Black housing and protective grille
- High power wattage 84 W
Features
- 118 dB(A)
- 375 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
B133 Set 24 V disc horns
B133 Set 24 V disc horns
- Signature Super Tone from HELLA
- Black housing and protective grille
- High power wattage 84 W
Features
- 118 dB(A)
- 375 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
S130 Set disc horns
S130 Set disc horns
➔ Avant grade look and design
➔ Enhanced electromagnet power gives overwhelming sound emission
➔ Available in 12 V / 24 V for highway application
Features
- 118 ± 3 dB(A)
- 280 Hz (low tone) / 380 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
S130 Set 24 V disc horns
S130 Set 24 V disc horns
➔ Avant grade look and design
➔ Enhanced electromagnet power gives overwhelming sound emission
➔ Available in 12 V / 24 V for highway application
Features
- 118 ± 3 dB(A)
- 280 Hz (low tone) / 380 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
S140 Set disc horns
S140 Set disc horns
➔ Avant grade look and design
➔ Enhanced electromagnet power gives overwhelming sound emission
➔ Available in 12 V / 24 V for highway application
Features
- 118 dB(A)
- 280 Hz (low tone) / 380 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
CA10 Set twin-tone compressor fanfares
CA10 Set twin-tone compressor fanfares
➔ Red plastic trumpet plus high-performance compressor
➔ Housing made of ABS plastic and bracket made of galvanised metal
➔ Electro-pneumatic
➔ For vehicles without compressed air tanks on board
Features
- ≥ 115 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 12 V
CA10 Set twin-tone compressor air horn
CA10 Set twin-tone compressor air horn
➔ Red trumpet horns and a high performance compressor
➔ ABS plastic body and support in galvanized metal
➔ Mounting bracket included
➔ With flat connections of 6.3 mm, open, blade type
➔ Pressure Range: 0.6 bar
Features
- ≥ 115 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 12 V
CA10 Set 24 V twin-tone compressor air horn
CA10 Set 24 V twin-tone compressor air horn
➔ Red trumpet horns and a high performance compressor
➔ ABS plastic body and support in galvanized metal
➔ Mounting bracket included
➔ With flat connections of 6.3 mm, open, blade type
➔ Pressure Range: 0.6 bar
Features
- ≥ 115 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 24 V
CA10 Set 24 V twin-tone compressor fanfares
CA10 Set 24 V twin-tone compressor fanfares
➔ Red plastic trumpet plus high-performance compressor
➔ Housing made of ABS plastic and bracket made of galvanised metal
➔ Electro-pneumatic
➔ For vehicles without compressed air tanks on board
Features
- ≥ 115 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 50,000 cycles (ECE R28)
- 24 V
CA12 Set twin-tone compressor air horn
CA12 Set twin-tone compressor air horn
- Red plastic trumpets and a high performance compressor
- ABS plastic body and support in galvanized metal
- Horn set include compressor and mounting kits
- With flat connections of 6.3 mm, open, blade type
- For the vehicles without air tank on board
Features
- ≥ 115 dB(A)
- 780 / 820 / 880 Hz
- 50,000 cycles (ECE-R28)
- 12 V
CA12 Set 24 V twin-tone compressor air horn
CA12 Set 24 V twin-tone compressor air horn
- Red plastic trumpets and a high performance compressor
- ABS plastic body and support in galvanized metal
- Horn set include compressor and mounting kits
- With flat connections of 6.3 mm, open, blade type
- For the vehicles without air tank on board
Features
- ≥ 115 dB(A)
- 630 / 795 / 840 Hz
- 50,000 cycles (ECE-R28)
- 24 V
CA20 single tone compressed air horn
CA20 single tone compressed air horn
- Super lound and high-penetrating power tone
- Pneumatic operation for vehicles with a compressed air brake system
- Pressure Range: 5.88 bar
Features
- ≥ 118 dB(A)
- 400 Hz
- 50,000 cycles (ECE-R28)
- 12 – 24 V
CA26 Electropneumatic horn
CA26 Electropneumatic horn
➔ Super compact design with horn and compressor in one module
➔ The integrated compressor enables immediate sound output
➔ Necessory mounting kits and relay are included
➔ Great fit for motorcycles and all vehicles
➔ For the vehicles or motorbike without air tank on board
Features
- ≥ 120 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
CA26 24 V Electropneumatic horn
CA26 24 V Electropneumatic horn
➔ Super compact design with horn and compressor in one module
➔ The integrated compressor enables immediate sound output
➔ Necessory mounting kits and relay are included
➔ Great fit for motorcycles and all vehicles
➔ For the vehicles or motorbike without air tank on board
Features
- ≥ 120 dB(A)
- 600 Hz (low tone) / 756 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 24 V
CA30 single tone compressed air horn
CA30 single tone compressed air horn
- Super lound and high-penetrating power tone
- Pneumatic operation for vehicles with a compressed air brake system
- Pressure Range: 0.98 bar
Features
- ≥ 120 dB(A)
- 370 Hz
- 50.000 cycles (ECE-R28)
- 12 V
CA40 24 V single tone compressed air horn
CA40 24 V single tone compressed air horn
- Super lound and high-penetrating power tone
- Pneumatic operation for vehicles with a compressed air brake system
- Pressure Range: 0.98 bar
Features
- ≥ 120 dB(A)
- 370 Hz
- 50.000 cycles (ECE-R28)
- 24 V
CA32 Twin-tone compressed air horn
CA32 Twin-tone compressed air horn
➔ Wide and far reaching sound
➔ Chromed finished trumpet
➔ For vehicles with a compressed air brake system
Features
- ≥ 120 dB(A)
- 370 Hz (low tone) / 415 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 12 V
CA32 24 V Twin-tone compressed air horn
CA32 24 V Twin-tone compressed air horn
➔ Wide and far reaching sound
➔ Chromed finished trumpet
➔ For vehicles with a compressed air brake system
Features
- ≥ 120 dB(A)
- 370 Hz (low tone) / 415 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 24 V
CA32N Twin-tone compressed air horn
CA32N Twin-tone compressed air horn
➔ Wide and far reaching sound
➔ Chromed finished trumpet
➔ For vehicles with a compressed air brake system
➔ With flat connections of 6.3 mm, open, blade type
➔ Pressure Range: 6 – 8 bar
Features
- ≥ 120 dB(A)
- 370 Hz (low tone) / 415 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 12 V
CA32N 24 V Twin-tone compressed air horn
CA32N 24 V Twin-tone compressed air horn
➔ Wide and far reaching sound
➔ Chromed finished trumpet
➔ For vehicles with a compressed air brake system
➔ With flat connections of 6.3 mm, open, blade type
➔ Pressure Range: 6 – 8 bar
Features
- ≥ 120 dB(A)
- 370 Hz (low tone) / 415 Hz (high tone)
- 50,000 cycles (ECE-R28)
- 24 V
CA34 Twin-tone compressed air horn
CA34 Twin-tone compressed air horn
- Wide and far reaching sound
- For vehicles with a compressed air brake system
- Pressure Range: 4 – 8.3 bar
Features
- ≥ 122 dB(A)
- 300 Hz (low tone) / 350 Hz (high tone)
- 50.000 cycles (ECE-R28)
- 24 V
TE10 Trumpet horn
TE10 Trumpet horn
➔ Black trumpet and space-saving desgin.
➔ Loud acoustic signaling for more safety in traffic.
➔ Sinlge piece trumpet is a good option for scooter.
Features
- 110 ± 3 dB(A)
- 490 Hz
- 80,000 cycles (ECE-R28)
- 12 V
TE10 Set Trumpet horn
TE10 Set Trumpet horn
➔ Black ABS housing with matt finished
➔ Project a wide sound emission for safe driving on the road
➔ Wide range of sounds when you install a set of low and high tones
Features
- 110 ± 3 dB(A)
- 410 Hz (low tone) / 490 Hz (high tone)
- 80,000 cycles (ECE-R28)
- 12 V
TE20 set trumpet horns
TE20 set trumpet horns
➔ Black ABS housing with glossy finished
➔ Project a wide sound emission for safe driving on the road
➔ Wide range of sounds when you install a set of low and high tones
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
TE22 Trumpet horn
TE22 Trumpet horn
- Trumpet horns with harmonious and strong warning sound
- Wide sound radiation for safe driving in road traffic
- Optimal tonal quality achieved when a high and low tone horn set is installed
Features
- 110 ± 3 dB(A)
- 500 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE R28)
- 12 V
TE22 Set trumpet horns
TE22 Set trumpet horns
➔ Trumpet horns with harmonious and strong warning tone
➔ Wide sound dispersion for safe driving in road traffic
➔ Optimum sound colour when installing a set of tweeter and woofer horns
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
TE24 trumpet horn
TE24 trumpet horn
- Sporty design
- Fully harmonious sound and wide sound emission
- Original equipment quality horns you can trust from a global leader
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
TE24 set trumpet horns
TE24 set trumpet horns
- Sporty design
- Fully harmonious sound and wide sound emission
- Original equipment quality horns you can trust from a global leader
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE R28)
- 12 V
TE24 set trumpet horns
TE24 set trumpet horns
- Sporty design
- Fully harmonious sound and wide sound emission
- Original equipment quality horns you can trust from a global leader
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
TE26 set trumpet horns with OE connector
TE26 set trumpet horns with OE connector
➔ OE connector for vehicle-specific applications
➔ Loud acoustic signaling for more safety in traffic
➔ Quick plug is easy to fit by end-consumer
➔ With vehicle specific connector
Features
- 110 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 100,000 cycles (ECE R28)
- 12 V
TE30 Set chrome trumpet horns
TE30 Set chrome trumpet horns
➔ Special edition with a high glossy chrome design
➔ Harmonious tone and wide sound emission
➔ Strong acoustic signaling for greater safety in traffic
Features
- 112 ± 3 dB(A)
- 410 Hz (low tone) / 510 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 12 V
TE30 Set 24 V trumpet horns
TE30 Set 24 V trumpet horns
➔ Harmonious sound and wide sound dispersion
➔ Ideal for commercial vehicles
➔ Optimal sound colour when installing a set of tweeter and woofer horns
Features
- 110 ± 3 dB(A)
- 410 Hz (low tone) / 510 Hz (high tone)
- 100,000 cycles (ECE-R28)
- 24 V
TE40 Set trumpet horns
TE40 Set trumpet horns
- Ultra-Long service life
- Switching mechanism is replaced by an electronic component
- Provide 3 years HELLA quality warranty to end consumers
Features
- 112 ± 3 dB(A)
- 400 Hz (low tone) / 500 Hz (high tone)
- 500,000 cycles (ECE-R28)
- 12 V
BM10 backup and warning alarm
BM10 backup and warning alarm
➔ Penetrating, far-reaching alarm sound
➔ Insulated electronics with epoxy resin to protect against rust, moisture and vibrations
➔ Various sound pressure level options for city traffic and construction sites
Features
- 110 ± 3 dB(A)
- 300,000 cycles (ECE-R10)
- 12 – 48 V
BM10 backup and warning alarm
BM10 backup and warning alarm
➔ Penetrating, far-reaching alarm sound
➔ Insulated electronics with epoxy resin to protect against rust, moisture and vibrations
➔ Various sound pressure level options for city traffic and construction sites
Features
- 110 ± 3 dB(A)
- 300,000 cycles (ECE-R10)
- 12 – 48 V with wiring harness
BM10 backup and warning alarm
BM10 backup and warning alarm
➔ Penetrating, far-reaching alarm sound
➔ Insulated electronics with epoxy resin to protect against rust, moisture and vibrations
➔ Various sound pressure level options for city traffic and construction sites
Features
- 110 ± 3 dB(A)
- 300,000 cycles (ECE-R10)
- 12 – 48 V
- with ground plate
BM10 backup and warning alarm
BM10 backup and warning alarm
➔ Penetrating, far-reaching alarm sound
➔ Insulated electronics with epoxy to protect against dust and vibrations
➔ With integrated bracket for universal mounting
➔ Automatic dB(A) adjustment to environments
Features
- 97 – 110 dB(A)
- 300,000 cycles (ECE-R10)
- 12 – 48 V
- with automatic dB(A) adjustment

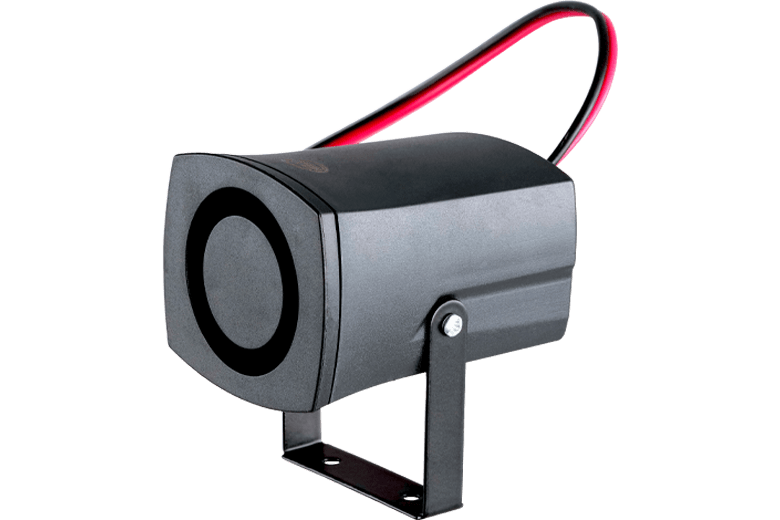

BX10 backup and warning alarm
BX10 backup and warning alarm
➔ Black plastic housing
➔ Multivoltage 12 – 24 V
➔ With integrated bracket for mounting
➔ With 150 mm wiring harness
➔ Recommend for cab
Features
- 90 ± 3 dB(A)
- 300,000 cycles
- 12 – 24 V

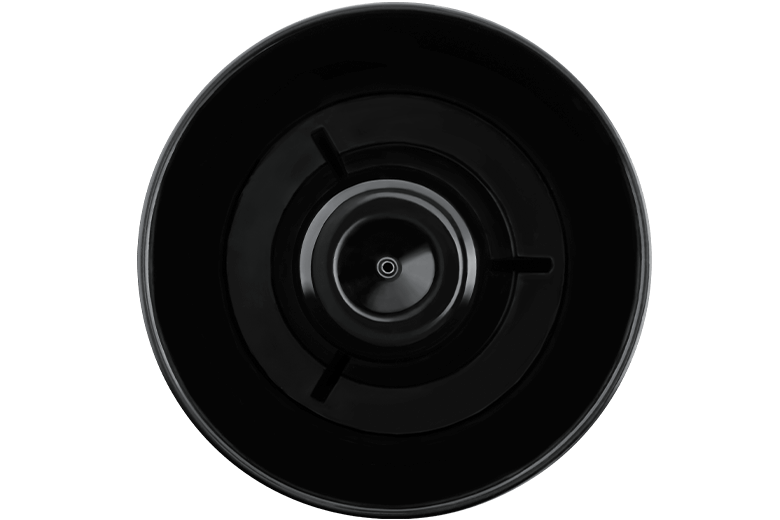

BX20 backup and warning alarm
BX20 backup and warning alarm
➔ Black ABS housing
➔ Powerful sound siren horn with six tones
➔ With integrated bracket for mounting
➔ With 150 mm wiring harness
➔ Great for vehicle anti-sheft and home security system
Features
- 100 ± 3 dB(A)
- 300,000 cycles
- 12 V
BM30 backup and warning alarm
BM30 backup and warning alarm
➔ Penetrating, long-range alarm sound
➔ Housing of glass-fibre reinforced nylon with integrated mounting bracket
➔ Insulated electronics with epoxy resin to protect against rust, moisture and vibrations
➔ Excellent for heavy commercial vehicles, excavators and other construction machinery
Features
- 112 ± 3 dB(A)
- 500,000 cycles (ECE-R10)
- 12 – 48 V
