Audi A1 - Engine warning light comes on | BEHR HELLA
Model year: from 2010 onwards
Engine: 1.6 TDI
Exhaust gas recirculation radiator
Engine warning light comes on
If, in the vehicles mentioned above, the error memory indicates an issue with the exhaust gas recirculation, this may be due to a faulty exhaust gas recirculation radiator.

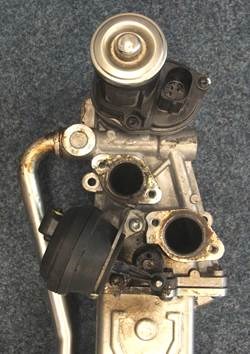

The exhaust gas recirculation radiator unit (EGR radiator) is fitted with a vacuum cell and an electric actuator motor (Figure 1). The EGR radiator should be examined according to the following criteria:
· Internal coking
· Functionality of vacuum cell
· Functionality and control of electric actuator motor
· External and internal leaks
Furthermore, the mechanics of the actuator motor (Figure 2) and the vacuum cell must be checked to ensure that they run smoothly. They may often jam or fail to run smoothly, leading to faults.
