Motor Position Sensor

Sensors

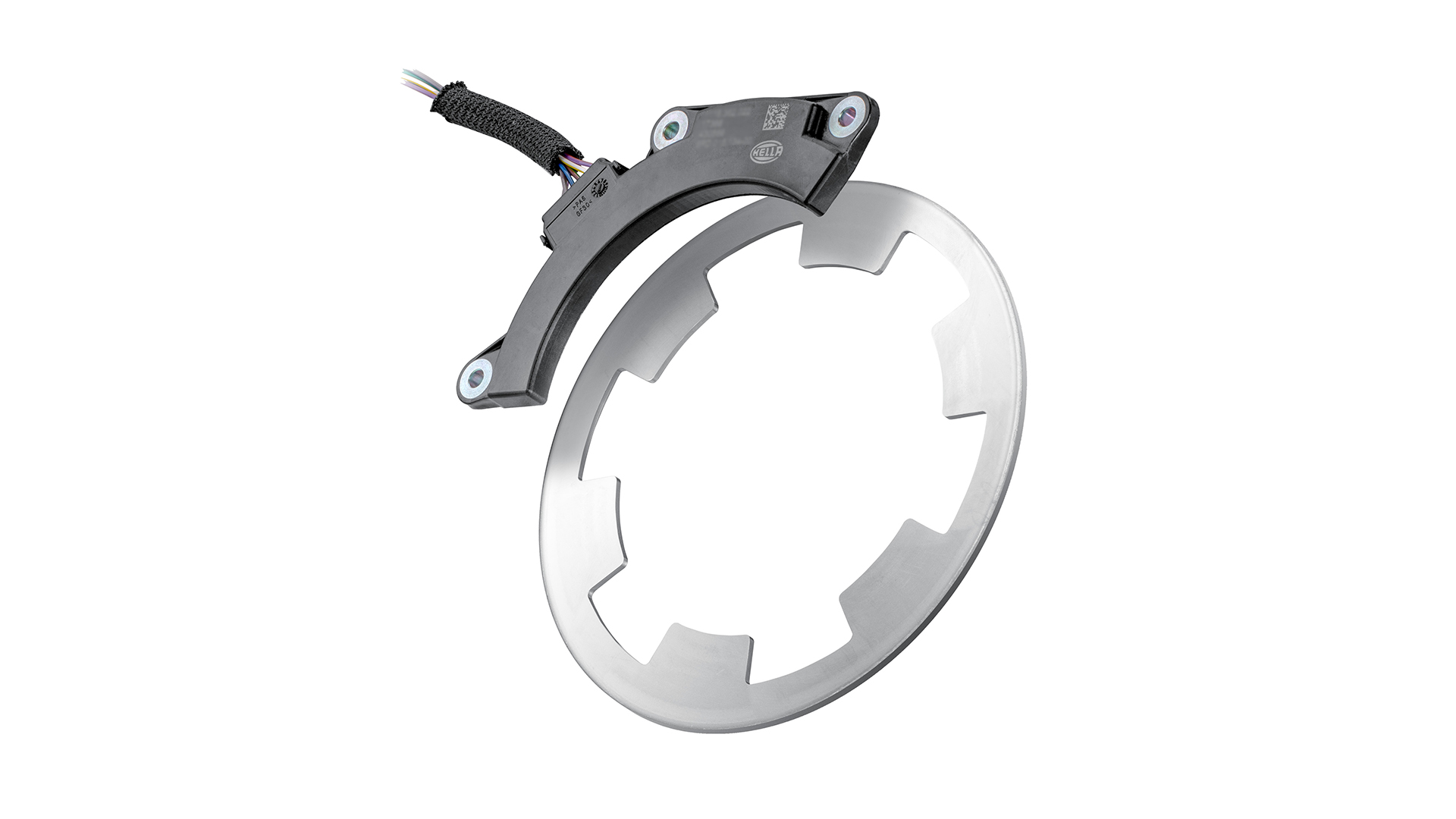

HELLA’s MPS (Motor Position Sensor) is the state-of-art rotary position sensor addressing the main integration challenges where other solutions such as resolvers and magnetic sensors are facing issues to serve the appropriate features. In electric and hybrid powertrains, precise and high-speed rotor position sensing is required for accurate commutation control leading to optimum e-motor efficiency (low torque ripple, vibration and noise).

HELLA Motor Position Sensor delivers highly accurate signals even in highly electrified vehicles.

Advantages

Flexible integration: customer specific design, End of Shaft, On Shaft or Through Hole assembly
Cost effective: no magnet, integrated signal processing
Robust to motor environment, magnetic stray fields (EMC exceed 4kA/m new requirements) and geometrical misalignments
sin/cos (differential or single ended), SPI, SENT/SPC (up to 6x speed), PSI5
Accuracy < 0,5° electrical
True power on sensor, accurate signal immediately from start up

Why HELLA?

Proven CIPOS® technology
Approximately 130 million position sensors pieces per year
Already 1 billion position sensor with CIPOS® technology in the field
