HELLA VALUEFIT LBE Light Bars

Powerful, homogeneous light output in a modern design: HELLA VALUEFIT LBE Light Bars are LED high beam headlamps in three different lengths. They owe their powerful light output to HELLA LED technology. They're enclosed in an impact-resistant aluminium housing with integrated cooling fins, making them extremely robust. The homogeneous high beam ensures optimum light distribution. In addition, HELLA VALUEFIT LBE Light Bars have a conspicuous position light with a striking appearance (version LBE 320 and 480). The frameless design prevents dust deposits from settling along edges The scope of delivery includes a long connecting cable and DEUTSCH DT connector for easy vehicle mounting. HELLA VALUEFIT LBE Light Bars have ECE road approval (R112/R10/R7) for high beam and position light. Multiple mounting options are possible thanks to the flexible mounting system. HELLA VALUEFIT LBE Light Bars are for universal use and are suitable for all types of vehicles such as 4x4s, SUVs, pickup trucks and commercial vehicles. The great LED light performance is available at a reasonable price.

Product Advantages

  • LED high beam headlamps in three lengths
  • Powerful, homogeneous light output
  • Modern design with various mounting options

Technical Data

Operating voltage

LBE 160 and 480 version: Multi-voltage (12-36 V) Version LBE 320: Multi-voltage (12-48 V)

Rated voltage12/24 V
Light function

High beam, position light (LBE 320 and 480 version)

Light sourceLED
MaterialShock-proof aluminium housing
Degree of protectionIP 67
Type approval3,100 g
Degree of protectionIP 67
Type approval

ECE-R10, ECE-R112

LBE 320 and 480 version: ECE R7 (position light)

Program Overview

Version

Description

Reference no.Part number

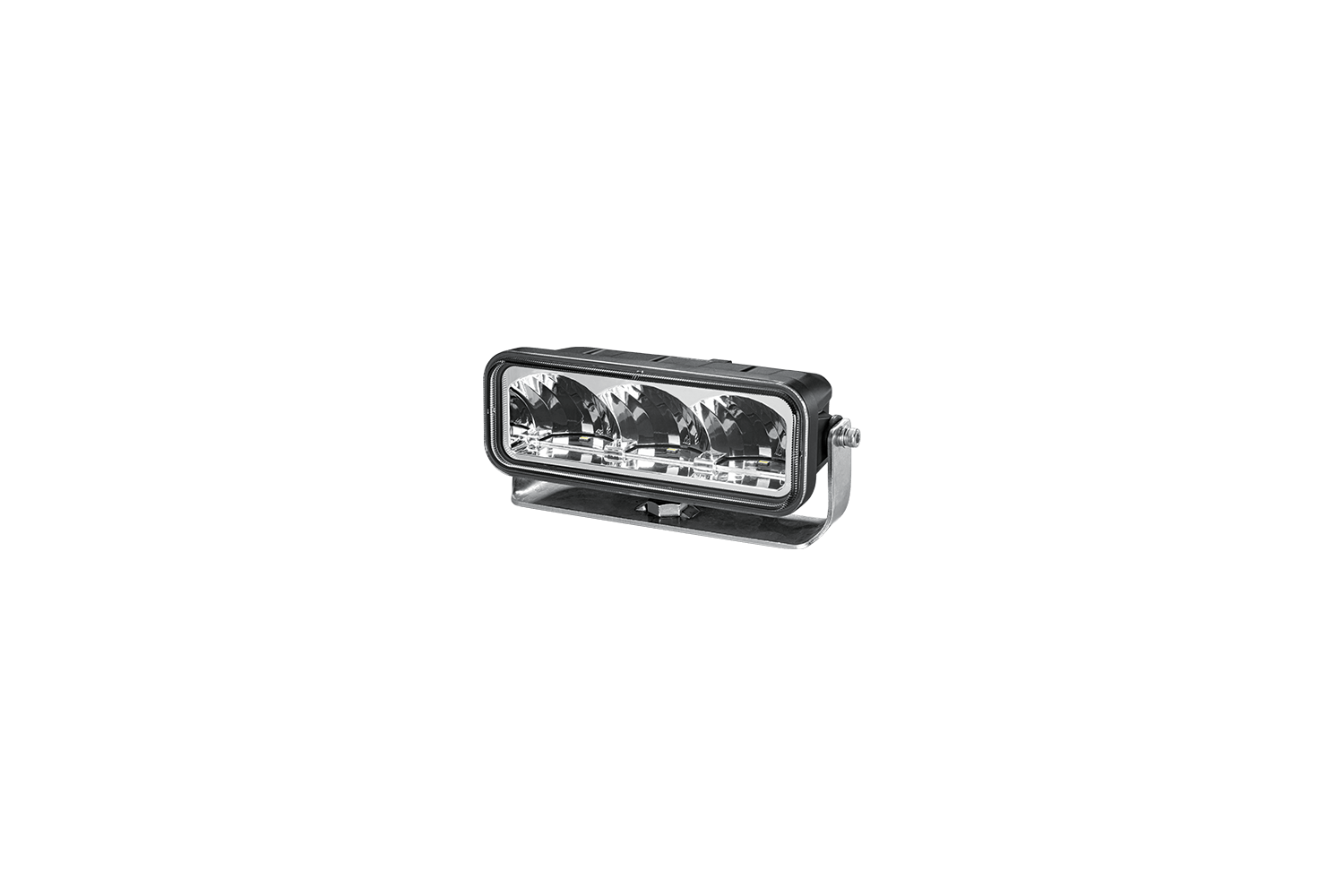

HELLA VALUEFIT Light Bar LBE 160

LED high beam headlamp, single

12.51FE 358 154-011

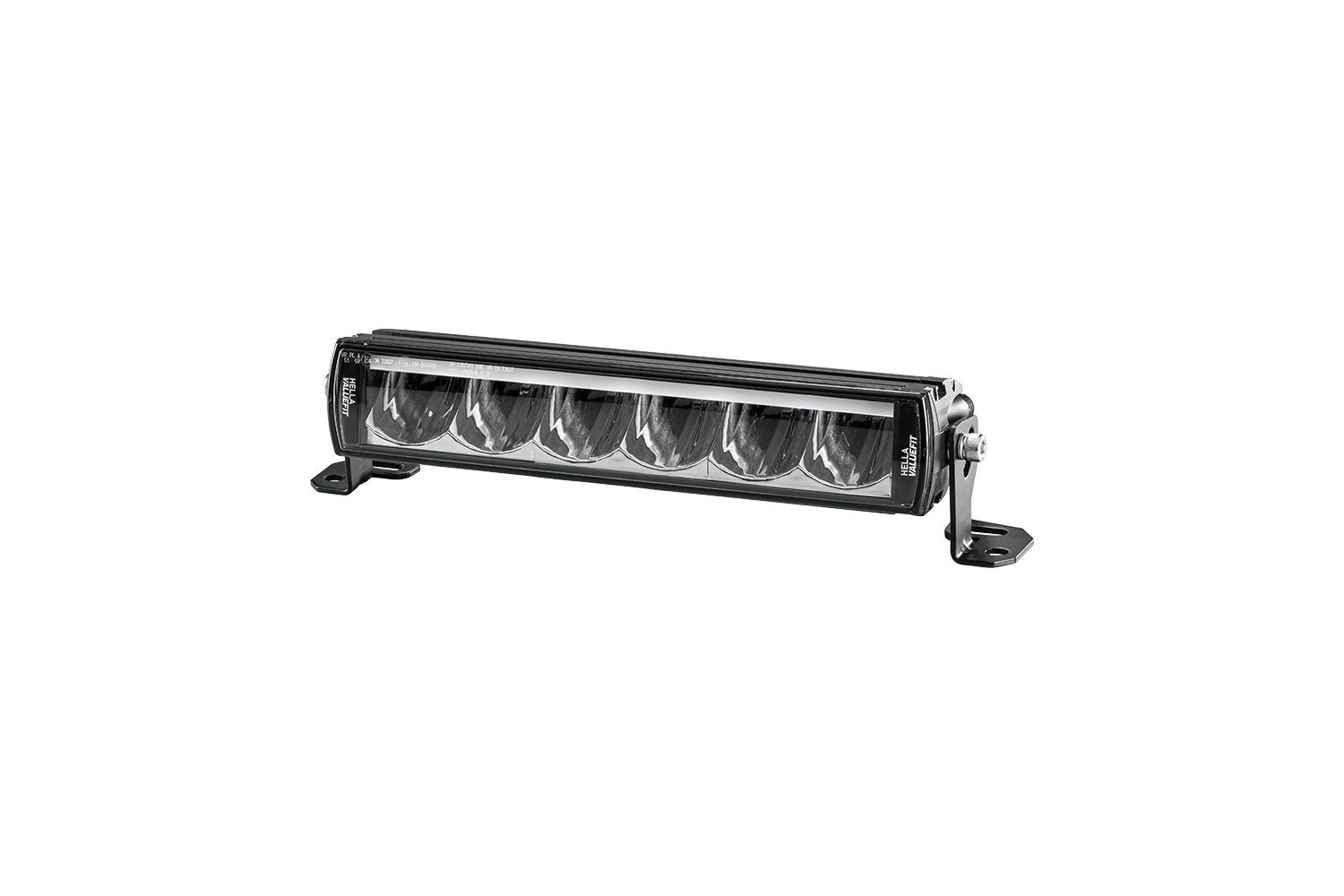

HELLA VALUEFIT Light Bar LBE 320LED high beam headlamp, single, with LED position light301FE 358 154-001

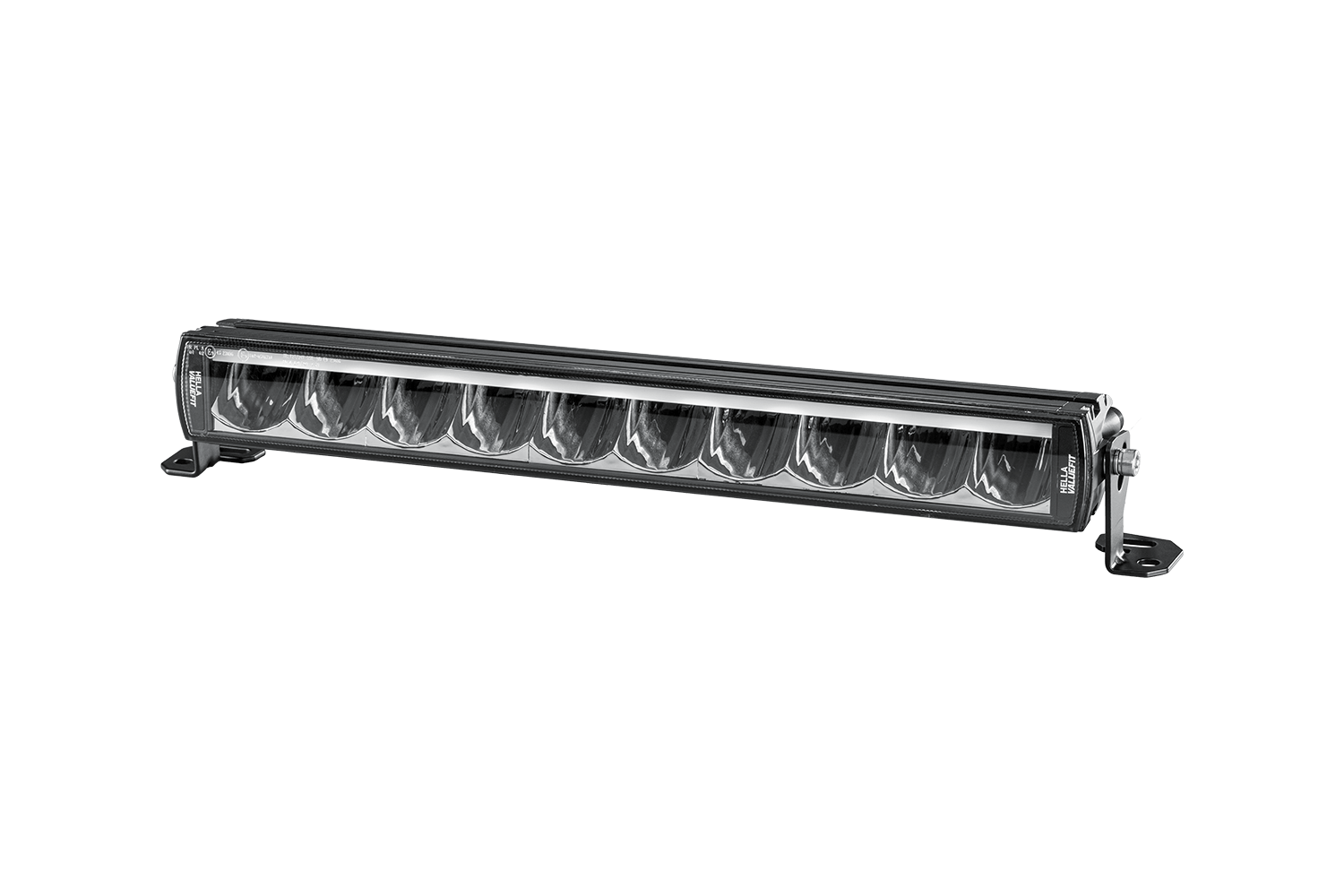

HELLA VALUEFIT Light Bar LBE 480451FE 358 154-021
