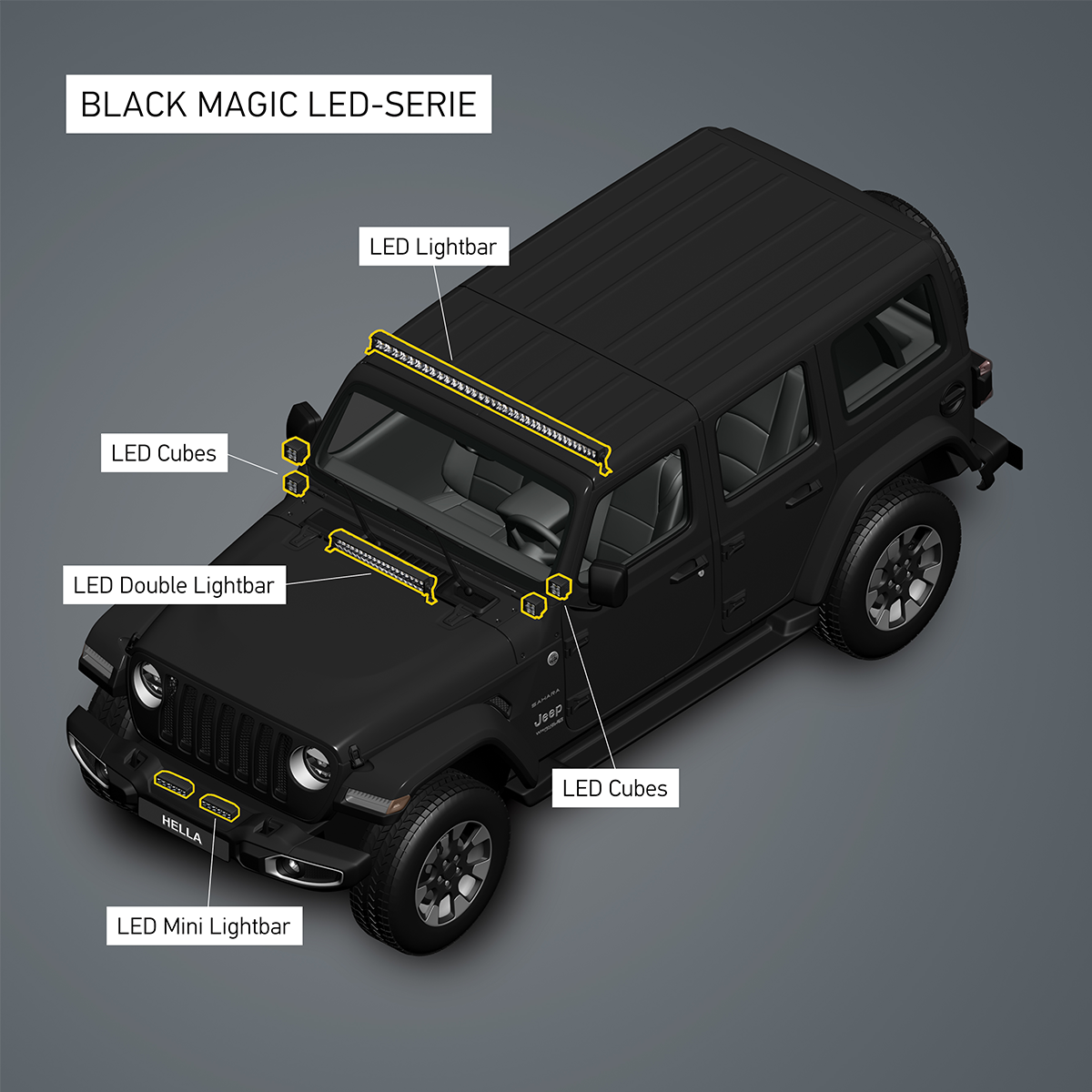

Black Magic Cubes
The HELLA Black Magic Series stands out with exceptional light performance, a bold and modern design, and outstanding durability. Engineered for extreme conditions, it combines advanced lighting technology with a strong, functional off-road character.
• Outstanding light performance for maximum visibility in extreme off-road conditions
• Robust, weather- and vibration-resistant design for harsh environments
• Modern Black Magic look with advanced LED technology and high efficiency
Find in Shops
Sound test
Ambient noise
On
Off
See the e-paper for more lighting highlights!
Take a look now and find the perfect lighting solution for your application!
View e-paperTechnical Sheet

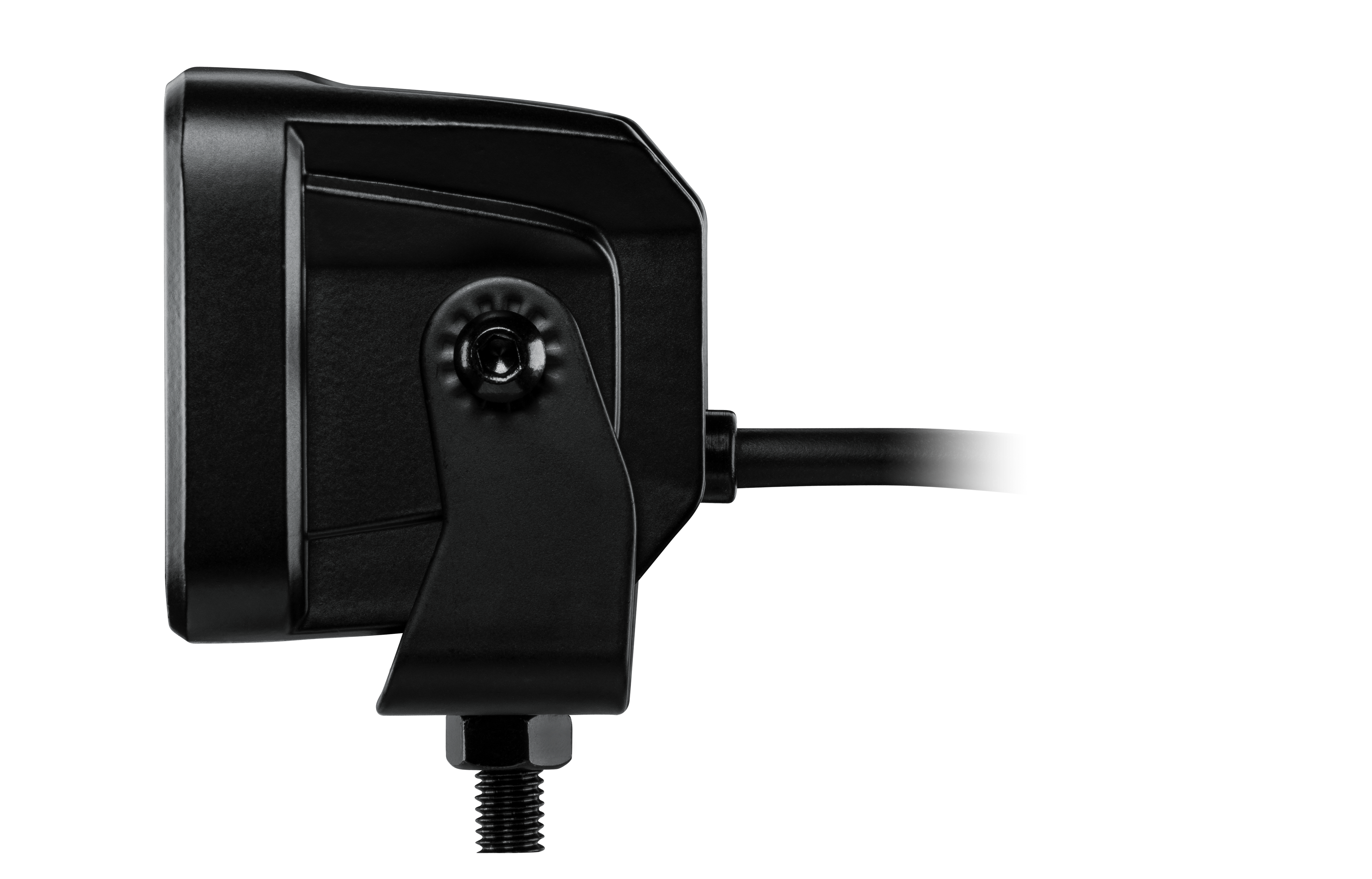

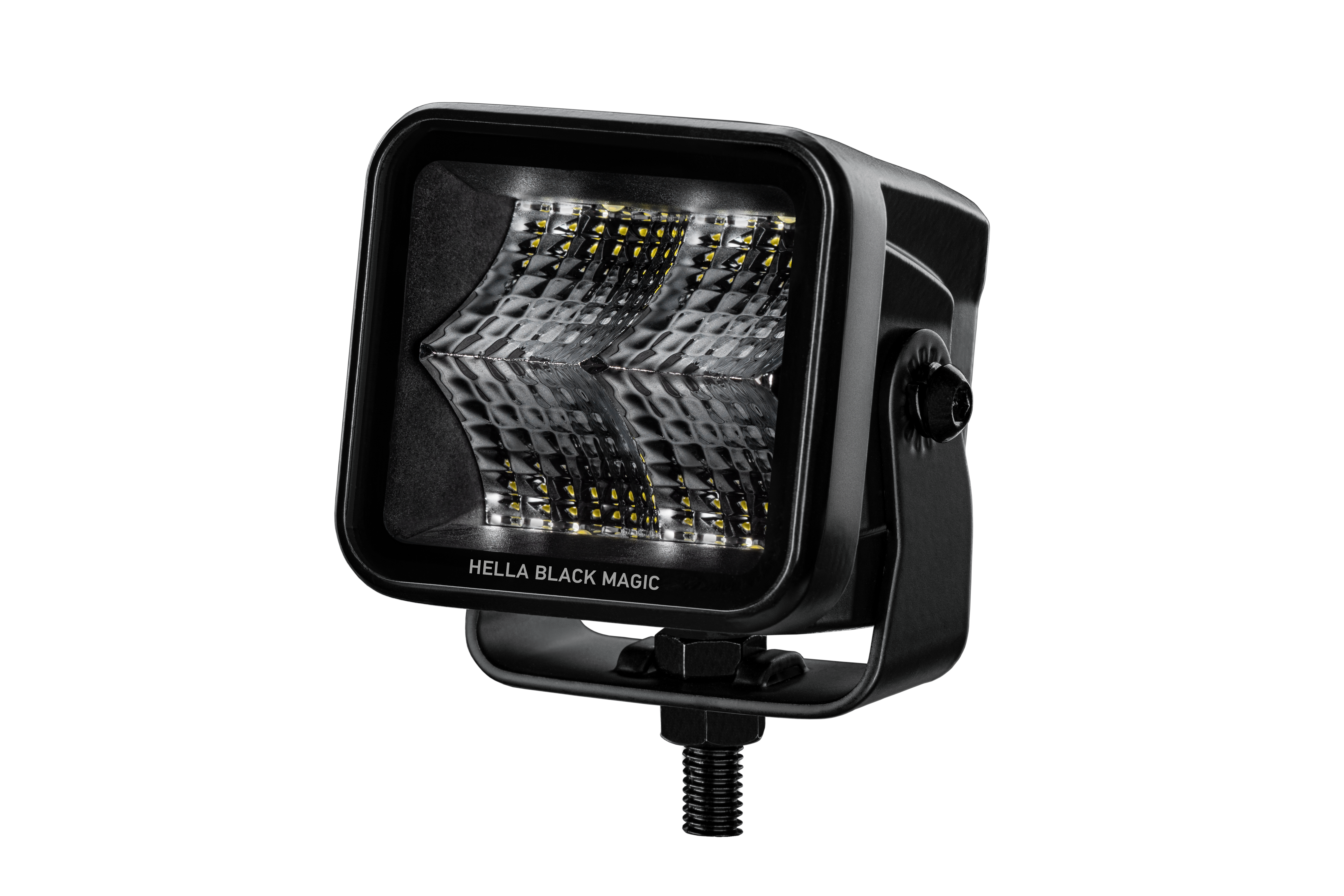

LED CUBE KIT 2.7'' FLOOD
- 1FA 358 176-801
- Voltage 12 V, 24 V
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1400 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Quantity Unit
Kit
Shape
Square
Height
72 mm
Mounting Type
mounting
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
70 mm
Depth
60 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
20 W
Supplementary Article/Supplementary Info 2
with cable , with switch
Quantity
2
Length
2,7 Inch

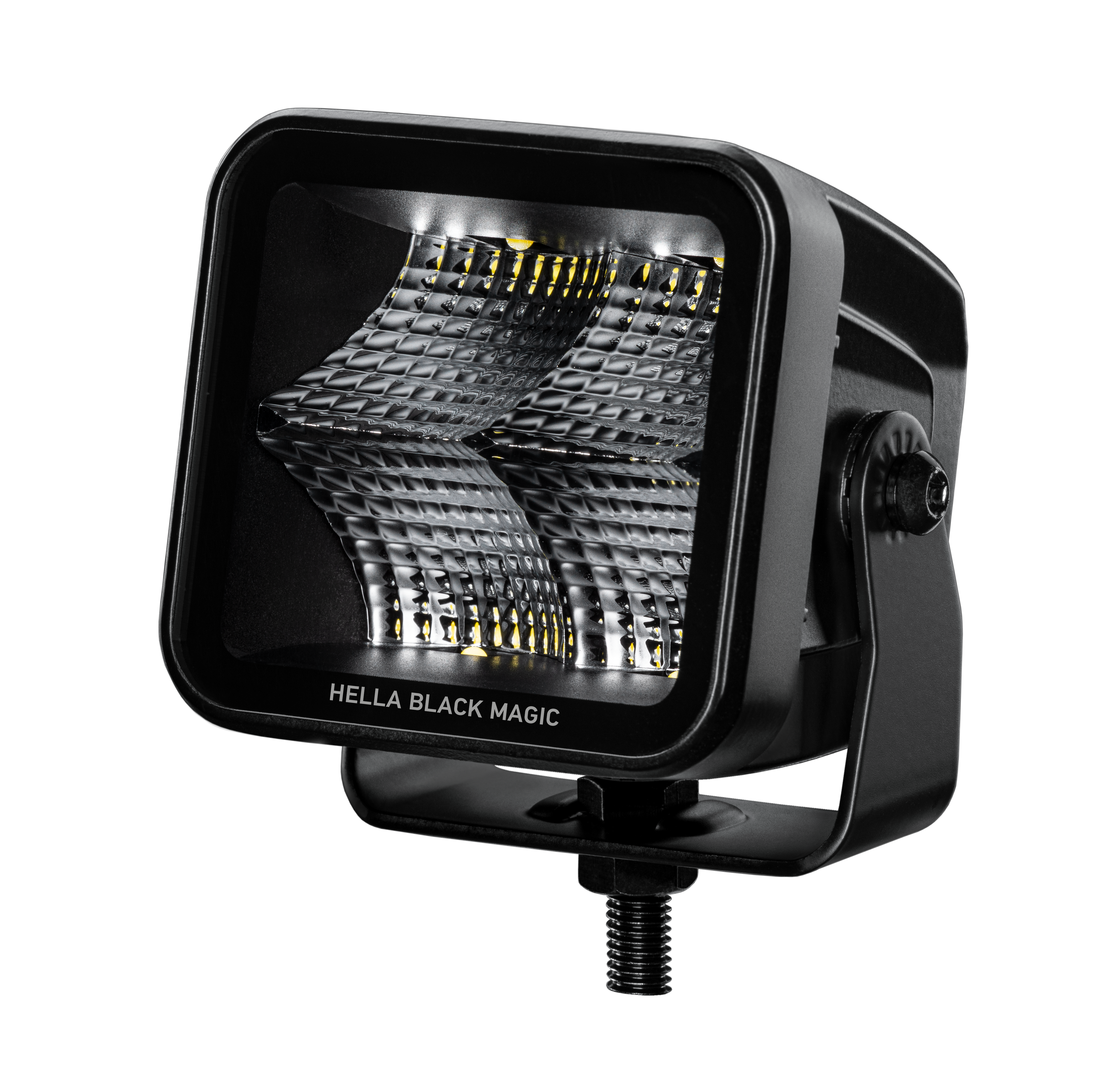

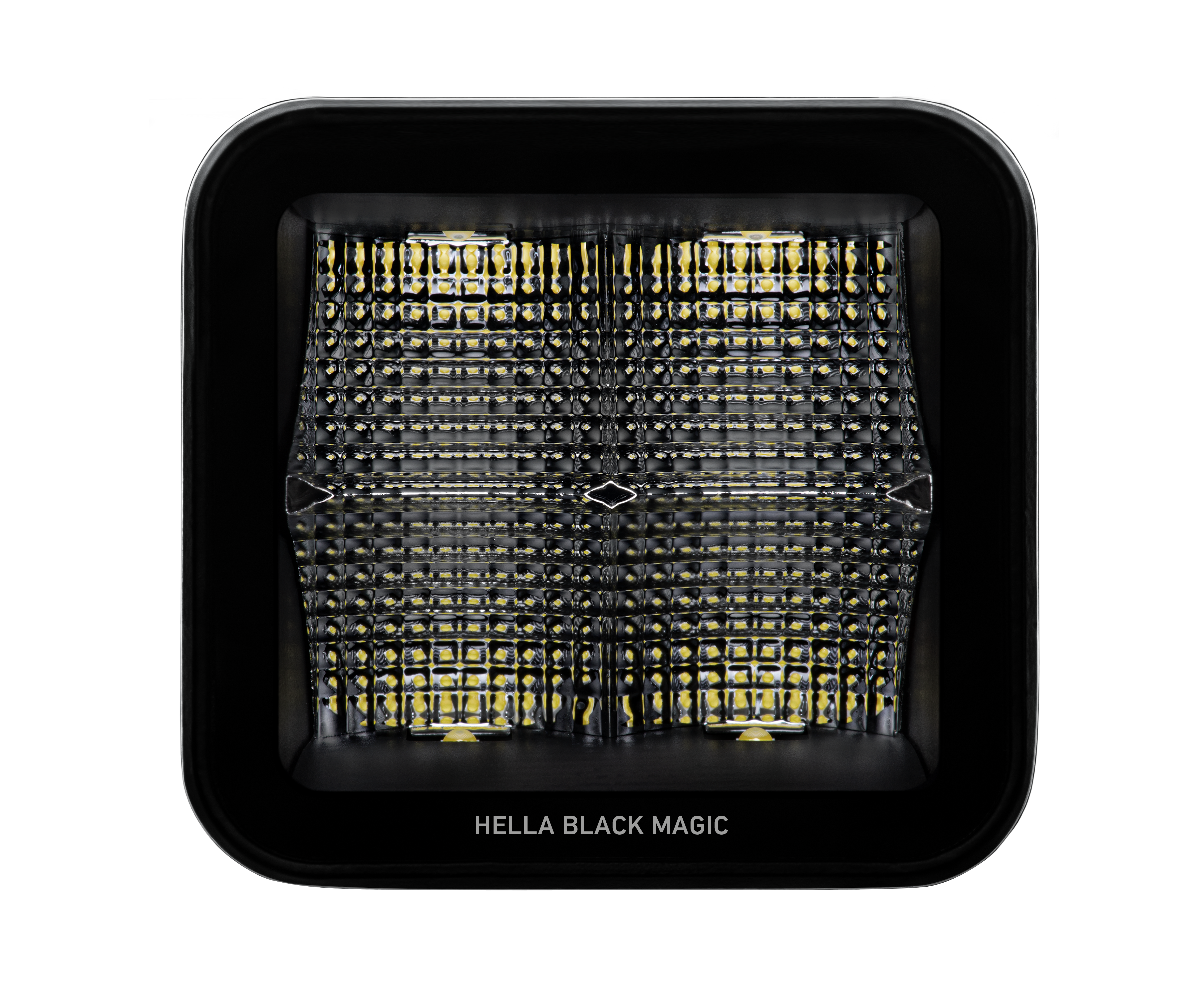

LED CUBE KIT 3.2'' FLOOD
- 1FA 358 176-811
- Voltage 12 V, 24 V
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Quantity Unit
Kit
Shape
Square
Height
83 mm
Mounting Type
mounting
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
81 mm
Depth
68 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
40 W
Supplementary Article/Supplementary Info 2
with cable , with switch
Quantity
2
Length
3,2 Inch

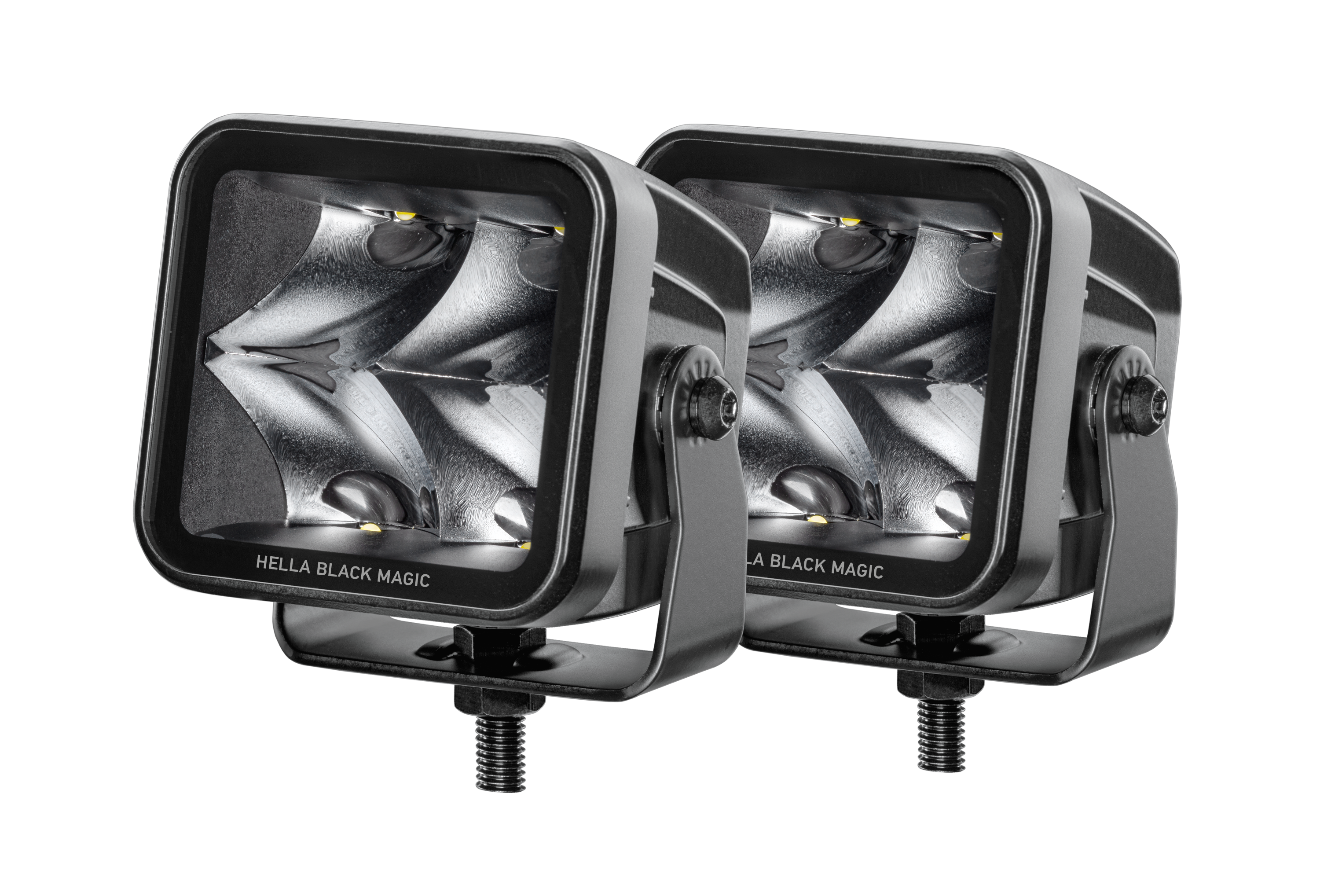

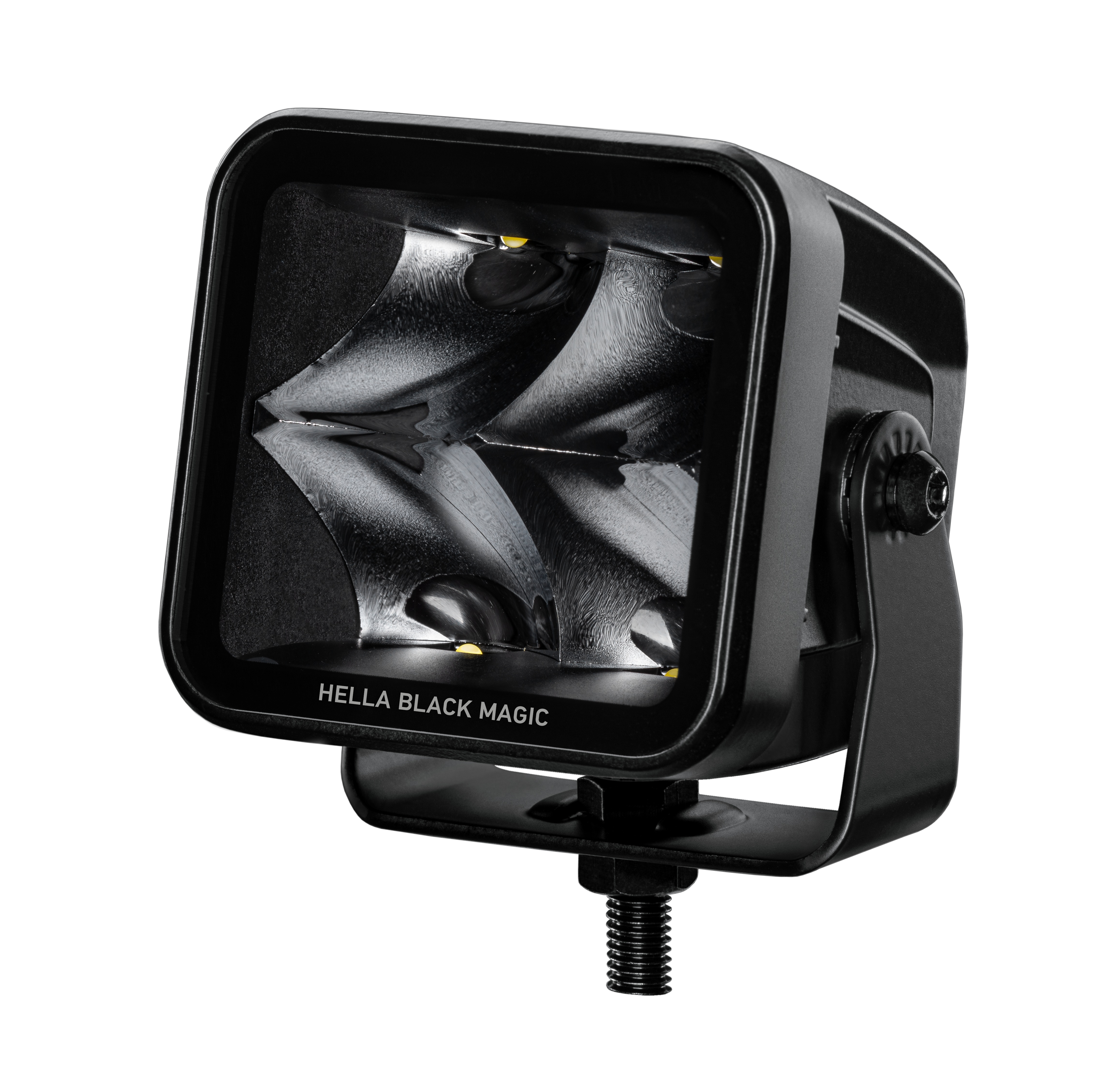

LED CUBE KIT 3.2'' SPOTLIGHT
- 1FA 358 176-821
- Voltage 12 V, 24 V
- Light Distribution Spot Illumination , Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Quantity Unit
Kit
Shape
Square
Height
83 mm
Mounting Type
mounting
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
81 mm
Depth
68 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
40 W
Supplementary Article/Supplementary Info 2
with cable , with switch
Quantity
2
Length
3,2 Inch

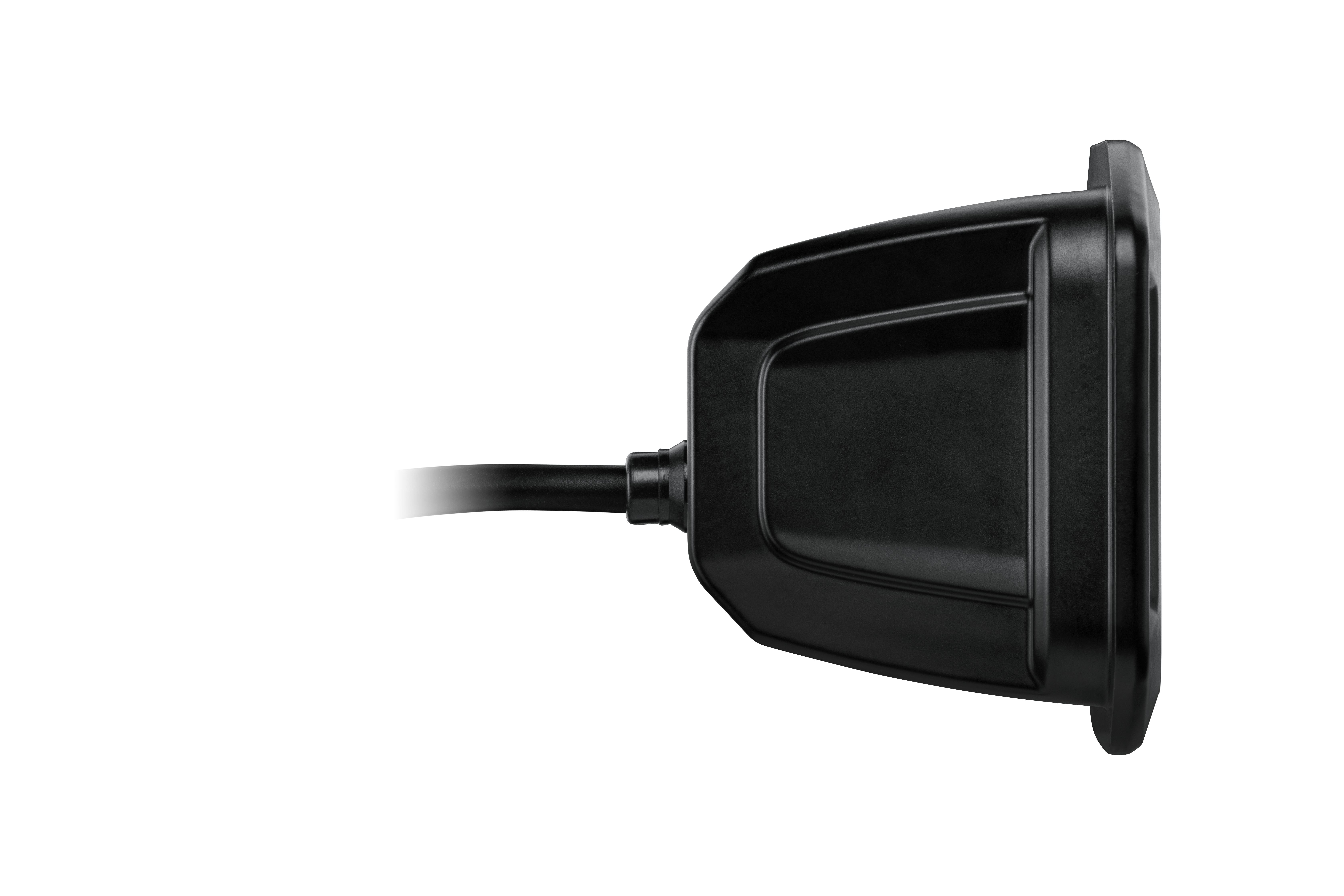

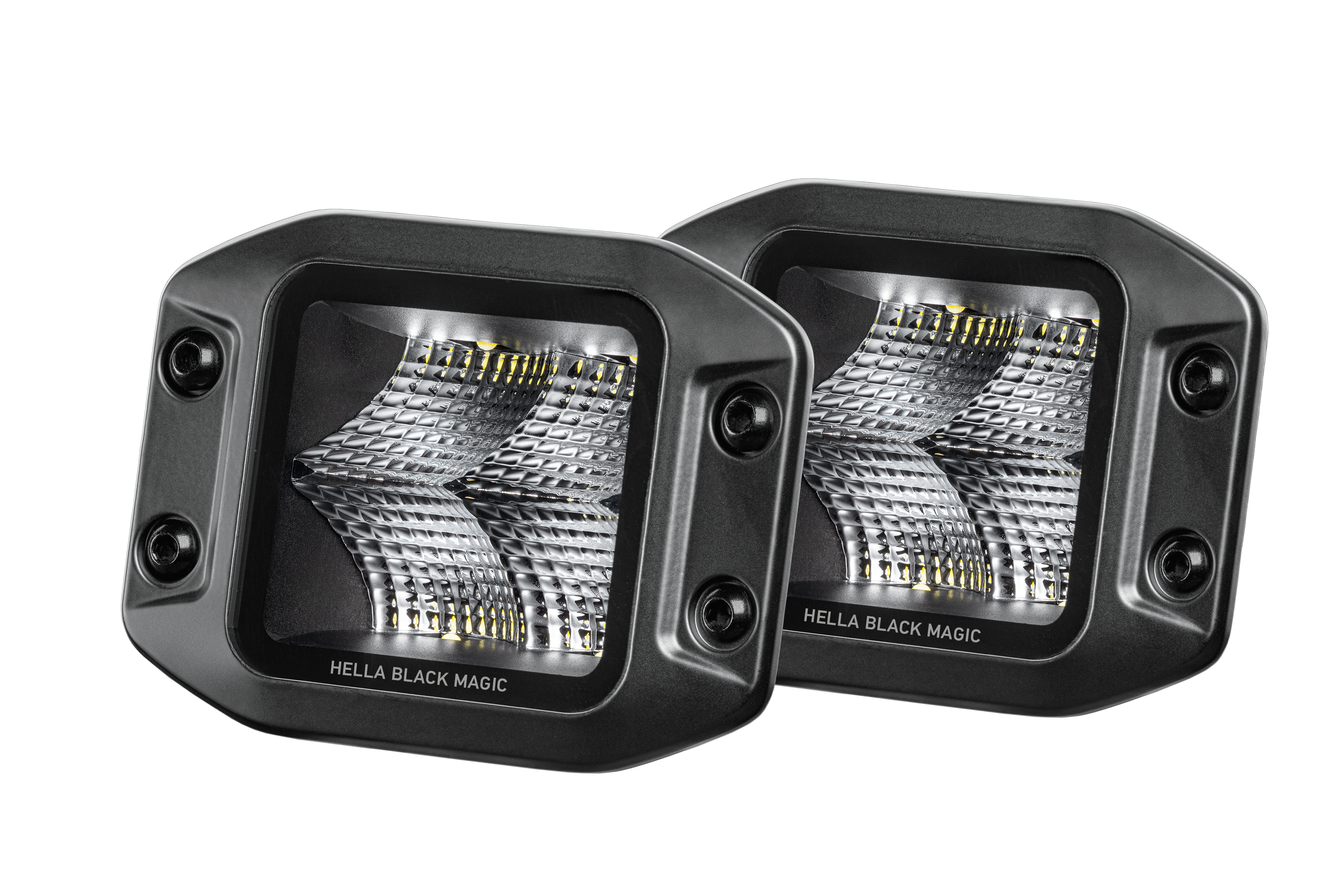

LED CUBE KIT 3.2'' FLOOD FLUSH
- 1FA 358 176-831
- Voltage 12 V, 24 V
- Light Distribution Long-range illumination , Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Quantity Unit
Kit
Shape
Square
Height
89 mm
Mounting Type
Fitting
Fastening Type
Four-point attachment
Lamp Type
LED
Width
122 mm
Depth
72 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
40 W
Supplementary Article/Supplementary Info 2
with cable , with switch
Quantity
2
Length
3,2 Inch
LED CUBE 2.7'' FLOOD
- 1FA 358 176-841
- Voltage 12 V, 24 V
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 1400 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Weight
350 g
Shape
Square
Height
72 mm
Mounting Type
mounting , Bolted
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
70 mm
Depth
60 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
20 W
Length
2,7 Inch
LED CUBE 3.2'' FLOOD
- 1FA 358 176-851
- Voltage 12 V, 24 V
- Light Distribution Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Weight
358 g
Shape
Square
Height
83 mm
Mounting Type
mounting , Bolted
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
81 mm
Depth
68 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
40 W
Length
3,2 Inch
LED CUBE 3.2'' SPOT
- 1FA 358 176-861
- Voltage 12 V, 24 V
- Light Distribution Long-range illumination , Short-Range Illumination
- fulfils ECE standard R10
- Luminous Flux 3000 lm
- Housing Colour black
- Plug Type DEUTSCH plug
- Colour Temperature 5700 K
- Light Design LED
- Number of LEDs 4
Cable Length
500 mm
Weight
358 g
Shape
Square
Height
83 mm
Mounting Type
mounting , Bolted
Fastening Type
Swivelling Mounting Bracket
Lamp Type
LED
Width
81 mm
Depth
68 mm
Protection Type per ISO 20653
IP68 , IP69K
Power consumption
40 W
Length
3,2 Inch
|
LED CUBE KIT 2.7'' FLOOD
|
LED CUBE KIT 3.2'' FLOOD
|
LED CUBE KIT 3.2'' SPOTLIGHT
|
LED CUBE KIT 3.2'' FLOOD FLUSH
|
LED CUBE 2.7'' FLOOD
|
LED CUBE 3.2'' FLOOD
|
LED CUBE 3.2'' SPOT
|
|
|---|---|---|---|---|---|---|---|
| 1FA 358 176-801 | 1FA 358 176-811 | 1FA 358 176-821 | 1FA 358 176-831 | 1FA 358 176-841 | 1FA 358 176-851 | 1FA 358 176-861 | |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V | 12 V, 24 V |
| Light Distribution | Short-Range Illumination | Short-Range Illumination | Spot Illumination , Short-Range Illumination | Long-range illumination , Short-Range Illumination | Short-Range Illumination | Short-Range Illumination | Long-range illumination , Short-Range Illumination |
| fulfils ECE standard | R10 | R10 | R10 | R10 | R10 | R10 | R10 |
| Luminous Flux | 1400 lm | 3000 lm | 3000 lm | 3000 lm | 1400 lm | 3000 lm | 3000 lm |
| Housing Colour | black | black | black | black | black | black | black |
| Plug Type | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug | DEUTSCH plug |
| Colour Temperature | 5700 K | 5700 K | 5700 K | 5700 K | 5700 K | 5700 K | 5700 K |
| Light Design | LED | LED | LED | LED | LED | LED | LED |
| Number of LEDs | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Cable Length | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Weight | 350 g | 358 g | 358 g | ||||
| Quantity Unit | Kit | Kit | Kit | Kit | |||
| Shape | Square | Square | Square | Square | Square | Square | Square |
| Height | 72 mm | 83 mm | 83 mm | 89 mm | 72 mm | 83 mm | 83 mm |
| Mounting Type | mounting | mounting | mounting | Fitting | mounting , Bolted | mounting , Bolted | mounting , Bolted |
| Fastening Type | Swivelling Mounting Bracket | Swivelling Mounting Bracket | Swivelling Mounting Bracket | Four-point attachment | Swivelling Mounting Bracket | Swivelling Mounting Bracket | Swivelling Mounting Bracket |
| Lamp Type | LED | LED | LED | LED | LED | LED | LED |
| Width | 70 mm | 81 mm | 81 mm | 122 mm | 70 mm | 81 mm | 81 mm |
| Depth | 60 mm | 68 mm | 68 mm | 72 mm | 60 mm | 68 mm | 68 mm |
| Protection Type per ISO 20653 | IP68 , IP69K | IP68 , IP69K | IP68 , IP69K | IP68 , IP69K | IP68 , IP69K | IP68 , IP69K | IP68 , IP69K |
| Power consumption | 20 W | 40 W | 40 W | 40 W | 20 W | 40 W | 40 W |
| Supplementary Article/Supplementary Info 2 | with cable , with switch | with cable , with switch | with cable , with switch | with cable , with switch | |||
| Quantity | 2 | 2 | 2 | 2 | |||
| Length | 2,7 Inch | 3,2 Inch | 3,2 Inch | 3,2 Inch | 2,7 Inch | 3,2 Inch | 3,2 Inch |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
